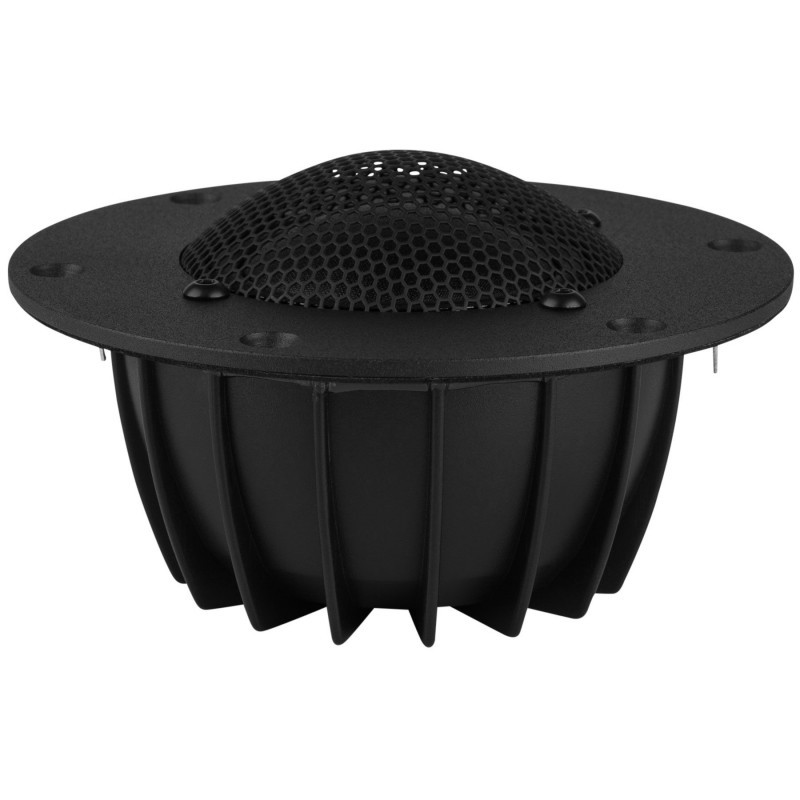

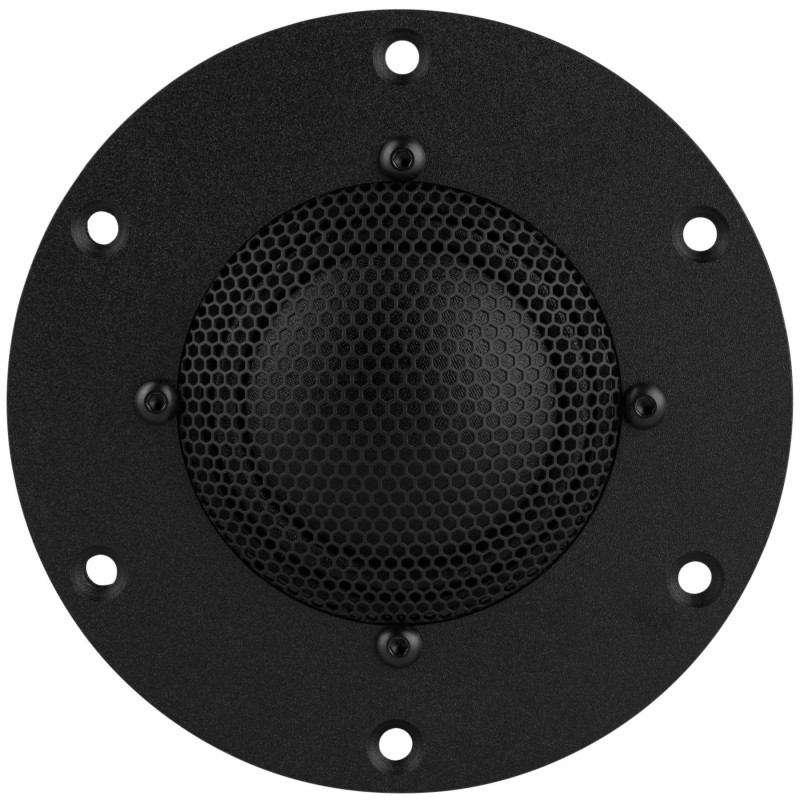

RS52FN-8 2" Reference Fabric Dome Midrange 8 Ohm
Large damped rear chamber for low resonance point
Notify me when back in stock
The Dayton Audio Reference Series soft dome midrange delivers excellent off-axis response and midrange performance. Its 2" damped fabric diaphragm is linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical 2-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance driver.
(848791004780)
• 2" damped fabric diaphragm for natural response and dispersion
• Neodymium keeps size and weight to a minimum without sacrificing efficiency
• Copper clad motor reduces distortion for transparent sound
| Speaker Series | Reference Series |
|---|---|
| Model Number | RS52FN-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791004780 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 1.2000 |
| Speaker Type | Midrange |
| Nominal Diameter | 2" |
| Power Handling (RMS) | 60 watts |
| Power Handling (max) | 120 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 90.0 dB @ 2.83V/1m |
| Frequency Response | 500 - 8,500 Hz |
| Voice Coil Diameter | 2" |
| Magnet Weight | -- |
| DC Resistance (Re) | 5.7 ohms |
| Voice Coil Inductance (Le) | 0.12 mH |
| Resonant Frequency (Fs) | 394.3 Hz |
| Mechanical Q (Qms) | 4.27 |
| Electromagnetic Q (Qes) | 1.39 |
| Total Q (Qts) | 1.05 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | 26.4 cm² |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | 1mm |
| Driver's Mechanical Losses (Rms) | -- |
| Entry / Exit Diameter | -- |
| Surround Material | Cloth |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | Cast Aluminum |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 5.12" |
| Overall Depth | 2.24" |
| Baffle Cutout Diameter | 3.94" |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | 4.5" |
| Product Weight | -- |
| SKU | 848791004780 |
| Model # | RS52FN-8 |
| Barcode # | 848791004780 |
| Shipping Weight | 0.4920kg |
