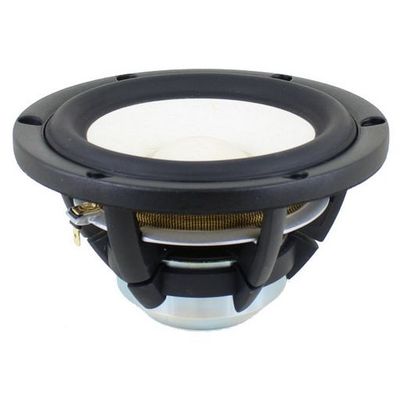

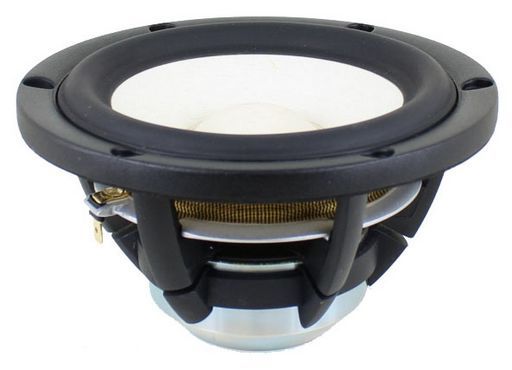

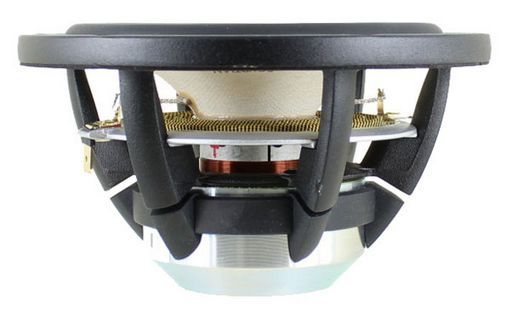

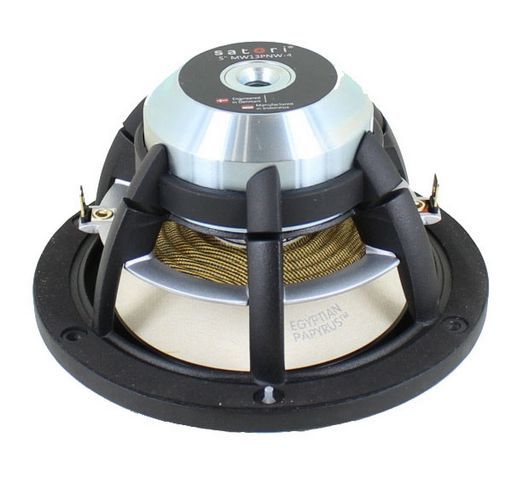

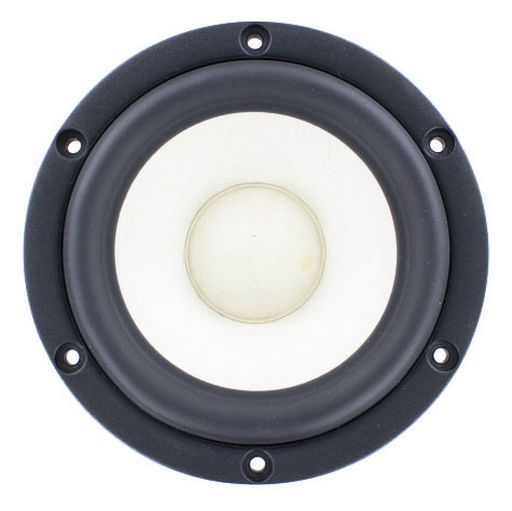

MW13PNW-8 - SATORI 5" MID-WOOFER WHITE

$249.00


Calculate Shipping


Vented aerodynamic cast aluminium chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet. Vented aerodynamic cast aluminium chassis for optimum strength and low compression Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house Soft low damping rubber surround for optimum transient response Advanced BIMAX spider for improved linearity Powerful optimized low distortion neodymium motor system Non-conducting fibre glass voice coil former for minimum damping Extended copper sleeve on pole piece for low inductance and reduced distortion CCAW voice coil for reduced moving mass Long life silver lead wires attached 180° apart for improved stability Vented pole piece and coil former for reduced compression High piston to chassis diameter ratio Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

(74403)

Order CodeMW13PNW-8
TypeMid-Woofer
Size5"
Price Typeeach
Power40Wrms
Coil30.5mmØ

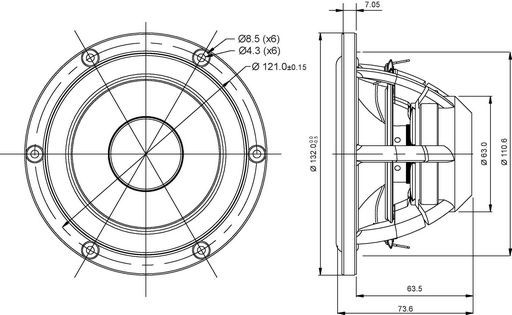

Width132mmØ
QTY1
Impedance8O (Re 6O)
Depth63.5mm
Mag.0.1kg
Sens.87dB
Re6.0O
Qms3.84
Qes0.33
Qts0.31
Vas15L
Sd70cm²
Cms2.22mm/N
Fs41.5Hz
Mms7.0g
Zn8O
Le0.13mH
Rms0.5kg/s
Diam.127mmØ
SeriesSatori
Page5d
ManufacturerSB Acoustics
Prms40W
MaterialsPapyrus White
Impedance (Ohm)8 ohm
Power (RMS)0-50 Watt
Inch5
SKU 74403
Model # MW13PNW-8
Brand SB Acoustics
Shipping Weight 0.9700kg
