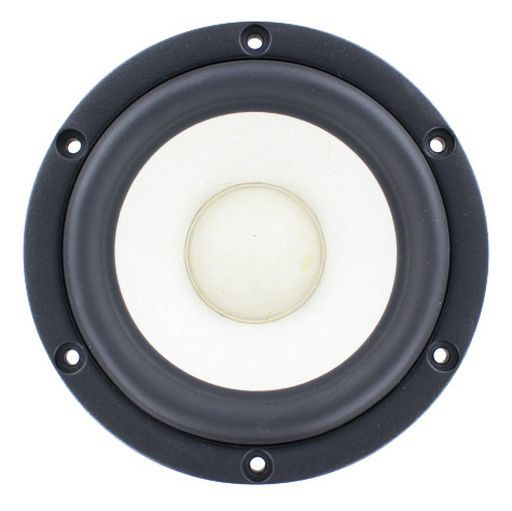

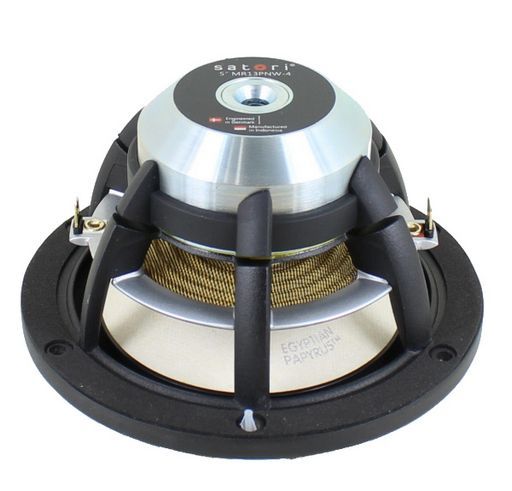

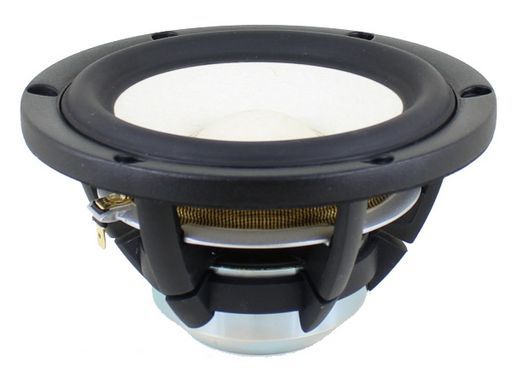

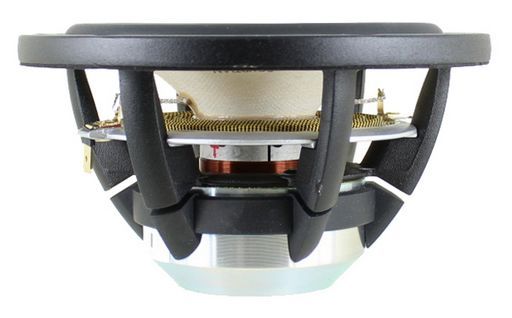

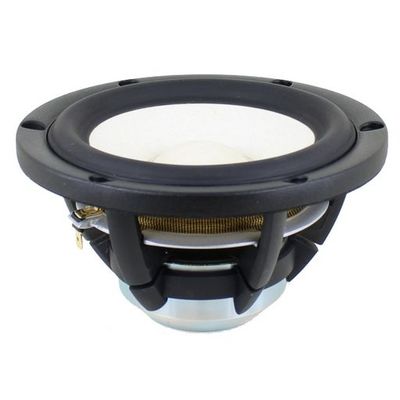

MR13PNW-4 - SATORI 5" MID-RANGE WHITE

SB ACOUSTICS

$269.00


Calculate Shipping


SB ACOUSTICS Vented aerodynamic cast aluminium chassis for optimum strength and low compression. Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house. Soft low damping rubber surround for optimum transient response. Advanced BIMAX spider for improved linearity. Powerful optimized low distortion neodymium motor system. Non-conducting fibre glass voice coil former for minimum damping. Extended copper sleeve on pole piece for low inductance and reduced distortion. CCAW voice coil for reduced moving mass. Long life silver lead wires attached 180° apart for improved stability. Vented pole piece and coil former for reduced compression. High piston to chassis diameter ratio. Gasket and bolt hole protrusions for reduced coupling to speaker cabinet. Vented aerodynamic cast aluminium chassis for optimum strength and low compression Proprietary cone material with EGYPTIAN PAPYRUS fibres made in-house Soft low damping rubber surround for optimum transient response Advanced BIMAX spider for improved linearity Powerful optimized low distortion neodymium motor system Non-conducting fibre glass voice coil former for minimum damping Extended copper sleeve on pole piece for low inductance and reduced distortion CCAW voice coil for reduced moving mass Long life silver lead wires attached 180° apart for improved stability Vented pole piece and coil former for reduced compression High piston to chassis diameter ratio Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

(73033)

Order CodeMR13PNW-4
TypeMidrange
Size5"
Price Typeeach
Power30Wrms
Coil30.5mmØ
Width132mmØ
QTY1
Impedance4O (Re 3.3O)
Depth63.5mm
Mag.0.1kg
Sens.91dB
Re3.3O
Qms2.8
Qes0.25
Qts0.23
Vas19.4L
Sd70cm²
Cms2.79mm/N
Fs41Hz
Mms5.4g
Zn4O
Le0.11mH
Rms0.5kg/s
Diam.127mmØ
SeriesSatori
Page4c
ManufacturerSB Acoustics
Prms30W
MaterialsPapyrus White
Impedance (Ohm)4 ohm
Power (RMS)0-50 Watt
Inch5
SKU 73033
Model # MR13PNW-4
Brand SB Acoustics
