DSA115-PR 4" Designer Series Aluminum Cone Passive Radiator
Cosmetic frame edge looks great even when surface mounte
8 to 14 days
Notify me when back in stock

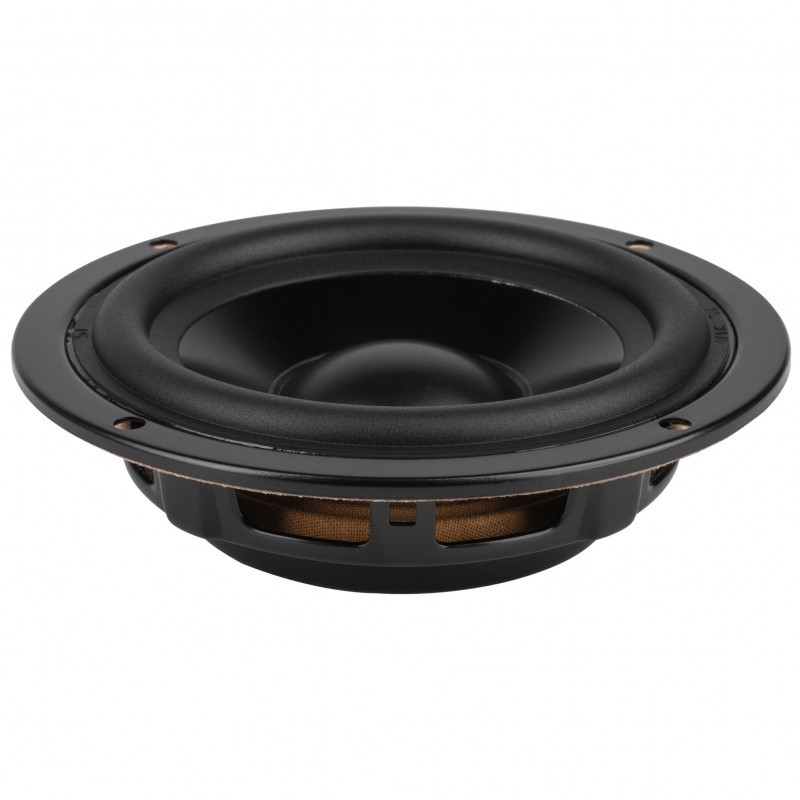

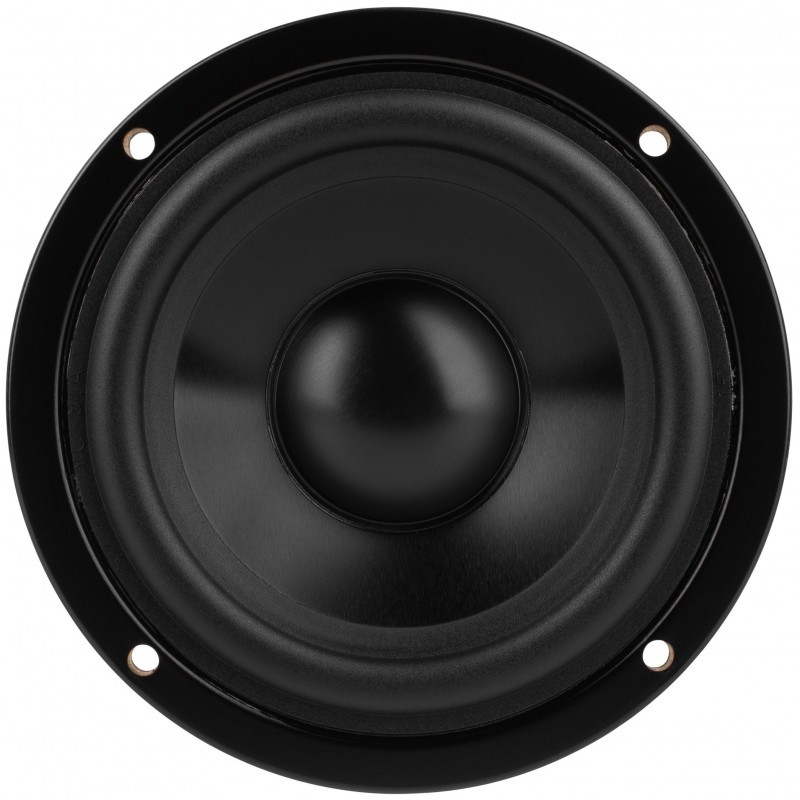

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from desktop two ways to portable battery powered speaker systems.
Specifications: • Fs: 30.9 Hz • Vas: 9.4 liters • Qms: 3.48 • Cms: 2.27 mm/N • Rms: 0.7 kg/s • Mms: 11.7 g • Sd: 54.1 sq. cm. • Xmax: 6 mm • Dimensions: Overall diameter: 115.57 mm, Cutout diameter: 93.73 mm, Depth: 29.72 mm.
Note: Adding mass to the passive radiator will decrease Fs and increase Qms.
Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd
(848791005039)
• Cosmetic frame edge looks great even when surface mounted

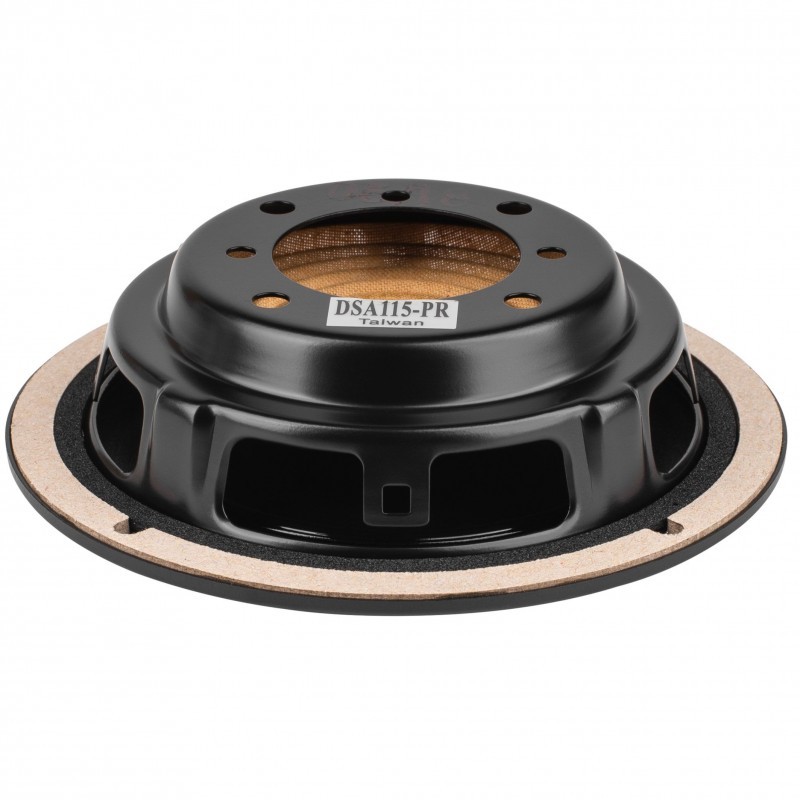

• Rear mounted screw allows easy mass adjustment for custom tuning
• Allows tuning small enclosures lower than using conventional ports
• Perfect match for Dayton Audio's aluminum cone Designer Series drivers
| Speaker Series | Designer Series |
|---|---|
| Model Number | DSA115-PR |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791005039 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.3500 |
| Speaker Type | Passive Radiator |
| Nominal Diameter | 4" |
| Power Handling (max) | -- |
| Continuous Program Power | -- |
| Sensitivity | -- |
| Frequency Response | -- |
| Voice Coil Diameter | -- |
| Magnet Weight | -- |
| DC Resistance (Re) | -- |
| Voice Coil Inductance (Le) | -- |
| Resonant Frequency (Fs) | 30.9 Hz |
| Mechanical Q (Qms) | 3.48 |
| Electromagnetic Q (Qes) | -- |
| Total Q (Qts) | -- |
| Diaphragm Mass Inc. Airload (Mms) | 11.7g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 2.27 mm/N |
| Surface Area Of Cone (Sd) | 54.1 cm² |
| Volume of Displacement (Vd) | 32.5 cm³ |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | 9.4 liters |
| Maximum Linear Excursion (Xmax) | 6 mm |
| Driver's Mechanical Losses (Rms) | 0.7 kg/s |
| Cone / Diaphragm Material | Aluminum Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | Steel |
| Magnet Material | -- |
| Overall Outside Diameter | 115.57 mm |
| Overall Depth | 29.72 mm |
| Baffle Cutout Diameter | 93.73 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | 106.93 mm |
| Product Weight | -- |
| SKU | 848791005039 |
| Model # | DSA115-PR |
| Brand | Dayton Audio |
| Shipping Weight | 0.1590kg |
