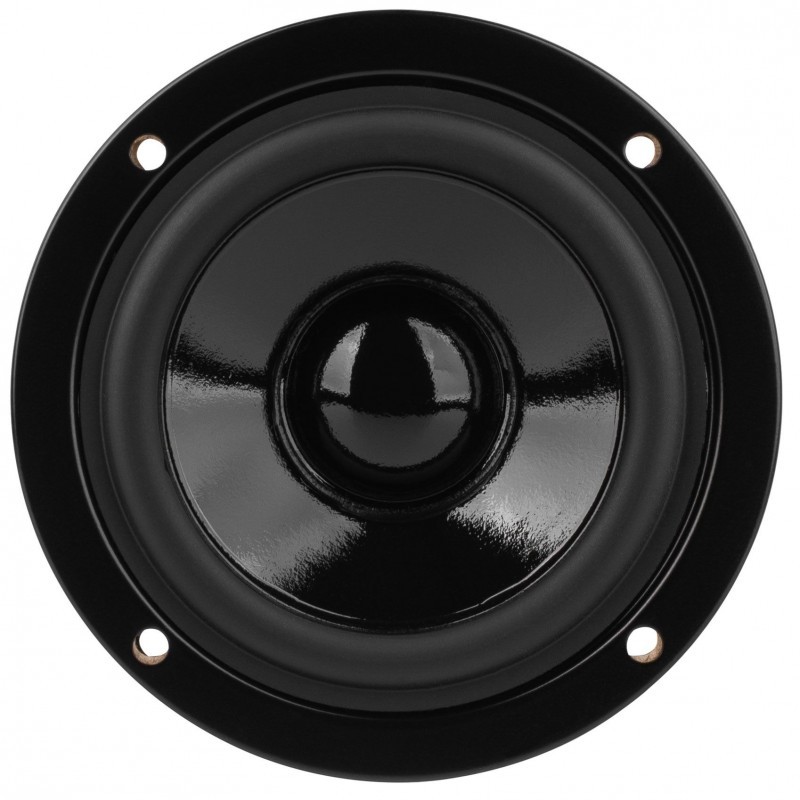

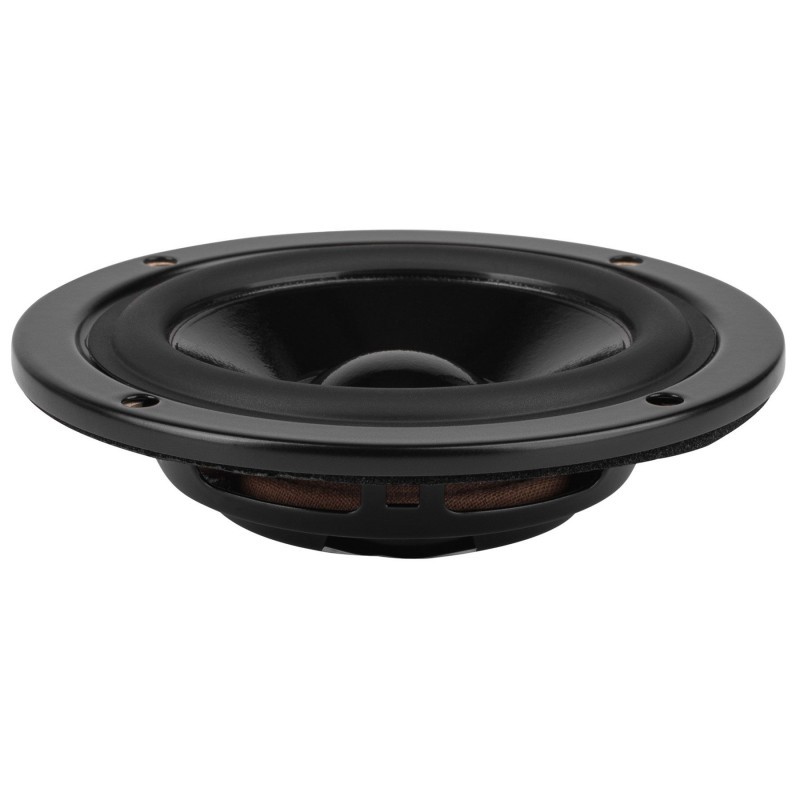

DS90-PR 3" Designer Series Passive Radiator
Perfect match for Dayton Audio's paper cone Designer Ser
Notify me when back in stock
The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to portable battery powered speaker systems.
Specifications: • Fs: 42.4 Hz • Vas: 3.5 liters • Qms: 5.9 • Cms: 2.55 mm/N • Rms: 0.3 kg/s • Mms: 5.5g • Sd: 31.2 sq. cm. • Xmax: 4 mm • Dimensions: Overall diameter: 92.22 mm, Cutout diameter: 70.1 mm, Depth: 21.84 mm.
(848791004995)
• Perfect match for Dayton Audio's paper cone Designer Series drivers
• Allows tuning small enclosures lower than using conventional ports

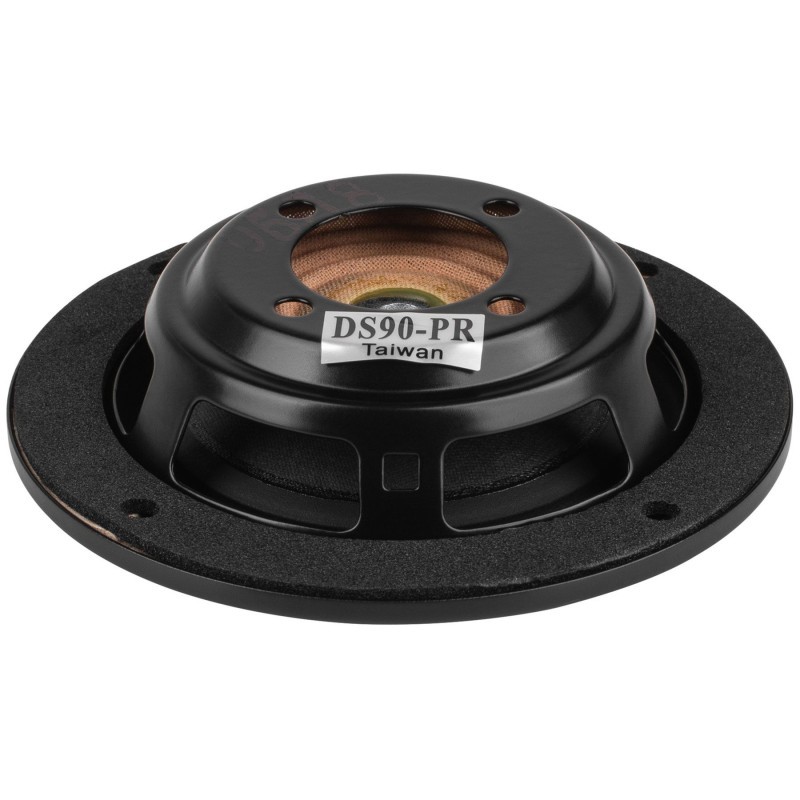

• Rear mounted screw allows easy mass adjustment for custom tuning
• Cosmetic frame edge looks great even when surface mounted
| Speaker Series | Designer Series |
|---|---|
| Model Number | DS90-PR |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791004995 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.2000 |
| Speaker Type | Passive Radiator |
| Nominal Diameter | 3" |
| Power Handling (max) | -- |
| Continuous Program Power | -- |
| Sensitivity | -- |
| Frequency Response | -- |
| Voice Coil Diameter | -- |
| Magnet Weight | -- |
| DC Resistance (Re) | -- |
| Voice Coil Inductance (Le) | -- |
| Resonant Frequency (Fs) | 42.4 Hz |
| Mechanical Q (Qms) | 5.9 |
| Electromagnetic Q (Qes) | -- |
| Total Q (Qts) | -- |
| Diaphragm Mass Inc. Airload (Mms) | 5.5g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 2.55 mm/N |
| Surface Area Of Cone (Sd) | 31.2 cm² |
| Volume of Displacement (Vd) | 12.5 cm³ |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | 3.5 liters |
| Maximum Linear Excursion (Xmax) | 4 mm |
| Driver's Mechanical Losses (Rms) | 0.3 kg/s |
| Cone / Diaphragm Material | Paper Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | Steel |
| Magnet Material | -- |
| Overall Outside Diameter | 92.2 mm |
| Overall Depth | 21.84 mm |
| Baffle Cutout Diameter | 70.1 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | 83.06 mm |
| Product Weight | -- |
| SKU | 848791004995 |
| Model # | DS90-PR |
| Brand | Dayton Audio |
| Shipping Weight | 0.0950kg |
