DS315-PR 12" Designer Series Passive Radiator
Smooth, low-distortion bass performance
8-14 days
Notify me when back in stock

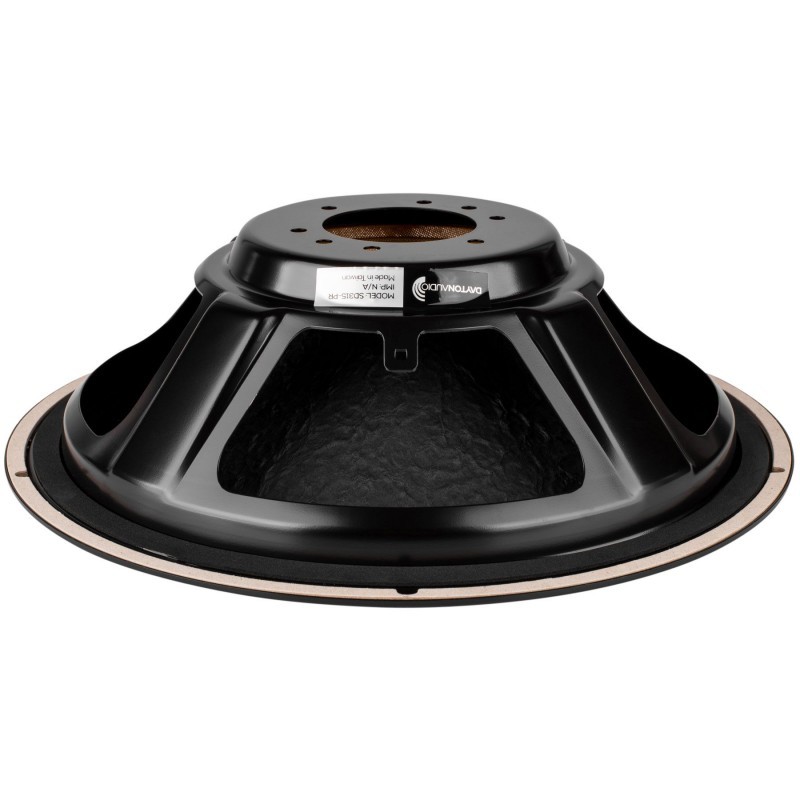

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.
Specifications: • Fs: 18.6 Hz • Vas: 162.4 liters • Qms: 4.27 • Cms: 0.5 mm/N • Mms: 147.1g • Rms: 4 kg/s • Sd: 480 sq. cm. • Xmax: 13 mm • Dimensions: Overall diameter: 314, Cutout diameter: 272 mm, Depth: 89 mm.
Note: Adding mass to the passive radiator will decrease Fs and increase Qms.
Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 12" woofer/subwoofer that has 10mm of X-max would require 2-12" passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).
(844632000416)
• Smooth, low-distortion bass performance
• Robust construction with high-excursion design
• Elegant appearance adds class to any project
• Cosmetic match for Designer Series woofers
| Speaker Series | Designer Series |
|---|---|
| Model Number | DS315-PR |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632000416 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 2.0000 |
| Speaker Type | Passive Radiator |
| Nominal Diameter | 12" |
| Power Handling (max) | -- |
| Continuous Program Power | -- |
| Sensitivity | -- |
| Frequency Response | -- |
| Voice Coil Diameter | -- |
| Magnet Weight | -- |
| DC Resistance (Re) | -- |
| Voice Coil Inductance (Le) | -- |
| Resonant Frequency (Fs) | 18.6 Hz |
| Mechanical Q (Qms) | 4.27 |
| Electromagnetic Q (Qes) | -- |
| Total Q (Qts) | -- |
| Diaphragm Mass Inc. Airload (Mms) | 147.1g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.5 mm/N |
| Surface Area Of Cone (Sd) | 480 cm² |
| Volume of Displacement (Vd) | 622.9 cm³ |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | 162.4 liters |
| Maximum Linear Excursion (Xmax) | 13 mm |
| Driver's Mechanical Losses (Rms) | 4 kg/s |
| Cone / Diaphragm Material | Coated Paper |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Dual Voice Coil | Yes |
| Basket/Frame Material | Steel |
| Magnet Material | -- |
| Overall Outside Diameter | 314 mm |
| Overall Depth | 89 mm |
| Baffle Cutout Diameter | 272 mm |
| # Mounting Holes | 5 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632000416 |
| Model # | SD315-PR |
| Barcode # | 844632000416 |
| Brand | Dayton Audio |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.324m |
| Shipping Height | 0.127m |
| Shipping Length | 0.324m |
| Shipping Cubic | 0.013320000m3 |
| Assembled Length | 0.324m |
| Assembled Height | 0.127m |
| Assembled Width | 0.324m |
