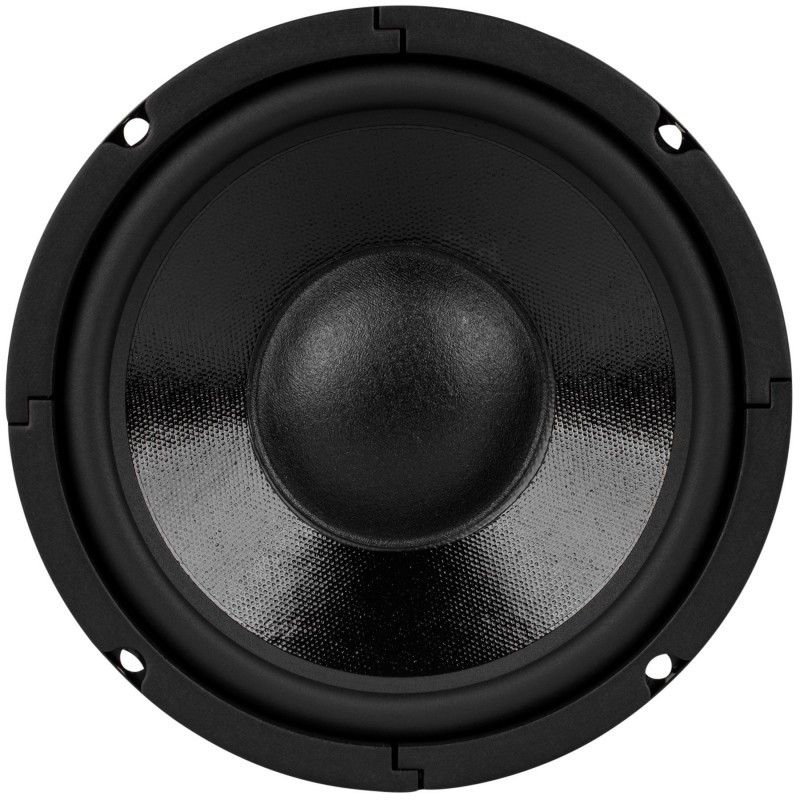

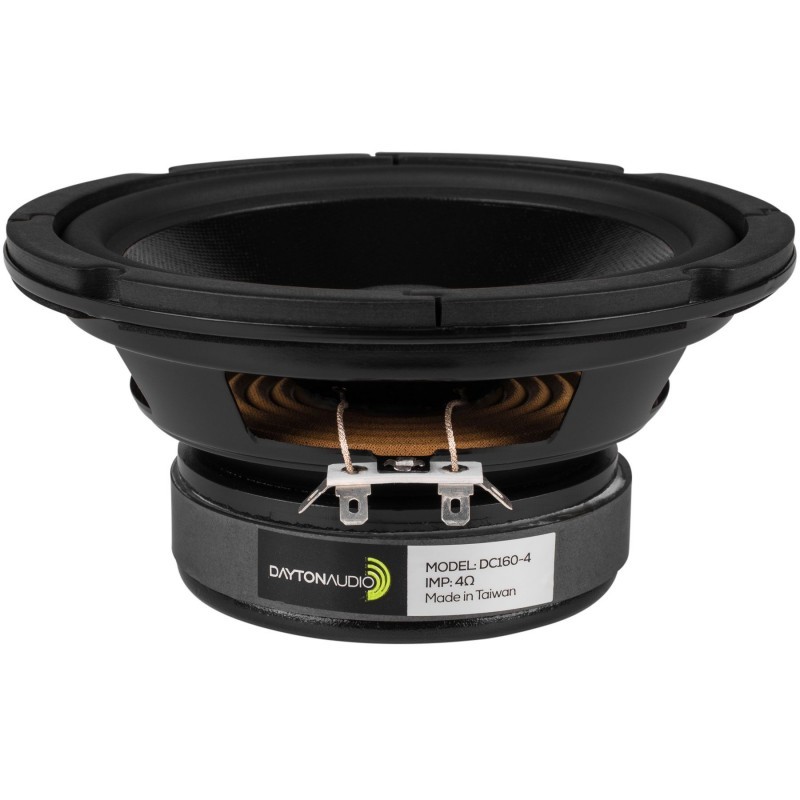

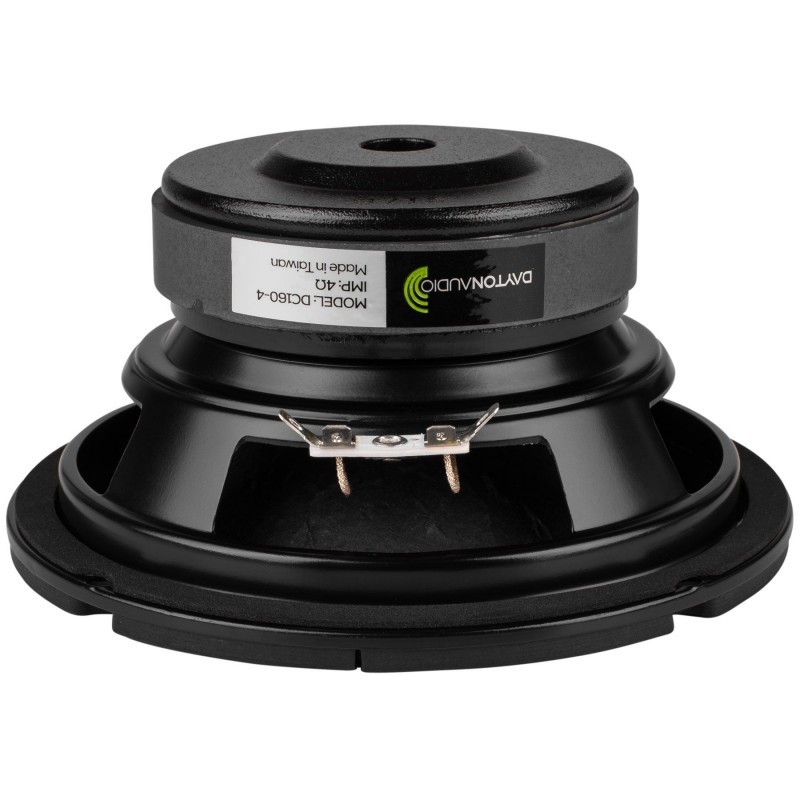

DC160-4 6-1/2" Classic Woofer 4 Ohm
Sturdy, easy-to-countersink round steel frame
$82.20
Availability:
8-14 days
8-14 days
Notify me when back in stock
One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC160-4 6-1/2" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, vented pole piece, coated cloth dust cap, and excellent low frequency response.
OPTIMUM CABINET SIZE *
Sealed Volume 0.23 ft.³
Sealed F3 73 Hz
Vented Volume 0.48 ft.³
Vented F3 45 Hz
- Enclosure volume/F3s based on BassBox "optimum" calculations
(844632093999)
• Sturdy, easy-to-countersink round steel frame
• 4 ohm impedance offers alternative load possibilities
• Coated paper cone provides smooth response and reduced cone breakup
• Aluminum VC former and vented pole piece for high power handling
• Large diameter flat spider and good Xmax for clean bass
• Suitable for sealed or vented enclosures
• 4 ohm impedance offers alternative load possibilities
• Coated paper cone provides smooth response and reduced cone breakup
• Aluminum VC former and vented pole piece for high power handling
• Large diameter flat spider and good Xmax for clean bass
• Suitable for sealed or vented enclosures
| Speaker Series | Classic Series |
|---|---|
| Model Number | DC160-4 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632093999 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 3.3000 |
| Speaker Type | Woofer |
| Nominal Diameter | 6.50" |
| Power Handling (RMS) | 60 watts |
| Power Handling (max) | 120 watts |
| Continuous Program Power | -- |
| Impedance | 4 ohms |
| Sensitivity | 88.3 dB @ 2.83V/1m |
| Frequency Response | 30 - 4,000 Hz |
| Voice Coil Diameter | 35.5 mm |
| Magnet Weight | 15 oz. |
| DC Resistance (Re) | 3.4 ohms |
| Voice Coil Inductance (Le) | 0.99 mH @ 1 kHz |
| Resonant Frequency (Fs) | 39 Hz |
| Mechanical Q (Qms) | 3.31 |
| Electromagnetic Q (Qes) | 0.49 |
| Total Q (Qts) | 0.43 |
| Diaphragm Mass Inc. Airload (Mms) | 29.2g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.57 mm/N |
| Surface Area Of Cone (Sd) | 136.8 cm² |
| Volume of Displacement (Vd) | 46.5 cm³ |
| BL Product (BL) | 7.02 Tm |
| Compliance Equivalent Volume (Vas) | 15 liters |
| Maximum Linear Excursion (Xmax) | 3.4 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Coated Paper |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 165 mm |
| Overall Depth | 82.2 mm |
| Baffle Cutout Diameter | 144.6 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632093999 |
| Model # | DC160-4 |
| Barcode # | 844632093999 |
| Brand | Dayton Audio |
| Shipping Weight | 1.4800kg |
| Shipping Width | 0.171m |
| Shipping Height | 0.095m |
| Shipping Length | 0.171m |
| Shipping Cubic | 0.002800000m3 |
| Assembled Length | 0.171m |
| Assembled Height | 0.095m |
| Assembled Width | 0.171m |
