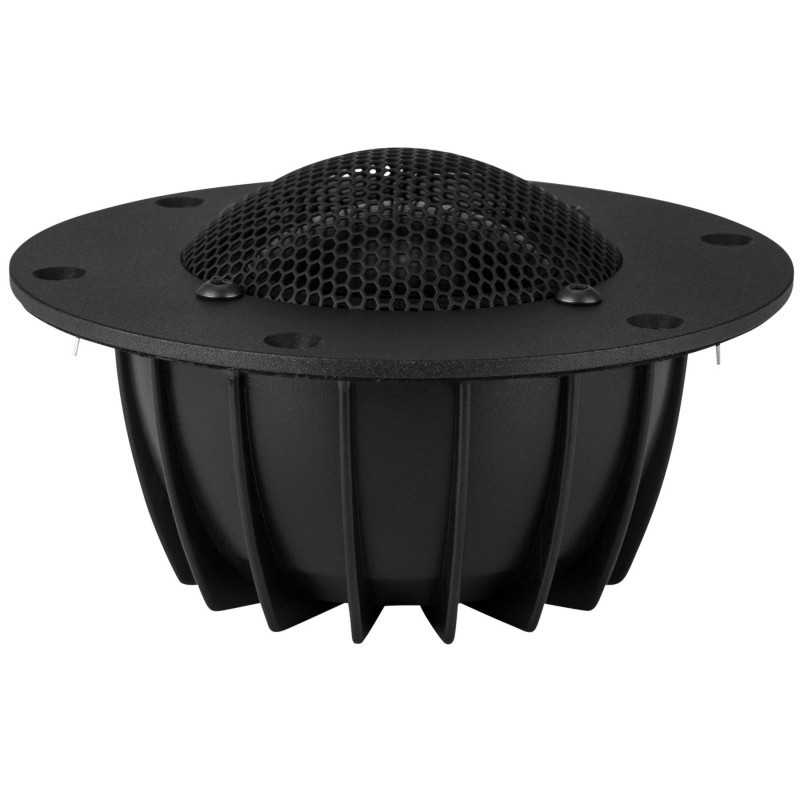

RS52AN-8 2" Dome Midrange 8 Ohm
Large damped rear chamber for low resonance point
$105.85
In Stock
Notify me when back in stock
The Dayton Reference Series dome midrange delivers excellent off-axis response and midrange performance. Its black anodized 2" diaphragm is extremely linear throughout the midrange and lower treble, allowing it to provide a seamless transition to tweeters. The superior dispersion characteristics will eliminate suckouts and other problems that can occur in typical two-way designs with large woofers. High quality construction includes a cast aluminum faceplate, metal grill, vented former, and copper clad pole piece. Great for use with other members of the Reference Series, but will also work well with any high-performance driver.
(844632067716)
• Large damped rear chamber for low resonance point
• 2" Aluminum diaphragm for good clarity and dispersion
• Neodymium magnet minimizes stray magnetic field
• Copper clad motor reduces distortion for transparent sound
• 2" Aluminum diaphragm for good clarity and dispersion
• Neodymium magnet minimizes stray magnetic field
• Copper clad motor reduces distortion for transparent sound
| Speaker Series | Reference Series |
|---|---|
| Model Number | RS52AN-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632067716 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 1.0000 |
| Speaker Type | Midrange |
| Nominal Diameter | 2" |
| Power Handling (RMS) | 60 watts |
| Power Handling (max) | 120 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 89.4 dB @ 2.83V/1m |
| Frequency Response | 500 - 14,000 Hz |
| Voice Coil Diameter | 52 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 6 ohms |
| Voice Coil Inductance (Le) | 0.13 mH @ 1 kHz |
| Resonant Frequency (Fs) | 341 Hz |
| Mechanical Q (Qms) | 3.16 |
| Electromagnetic Q (Qes) | 1.18 |
| Total Q (Qts) | 0.86 |
| Diaphragm Mass Inc. Airload (Mms) | 1.7g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.13 mm/N |
| Surface Area Of Cone (Sd) | 26.4 cm² |
| Volume of Displacement (Vd) | 2.64 cm³ |
| BL Product (BL) | 4.26 Tm |
| Compliance Equivalent Volume (Vas) | 0.13 liters |
| Maximum Linear Excursion (Xmax) | 1 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Metal Dome |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | -- |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 130 mm |
| Overall Depth | 57 mm |
| Baffle Cutout Diameter | 100 mm |
| # Mounting Holes | 6 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632067716 |
| Model # | RS52AN-8 |
| Barcode # | 844632067716 |
| Brand | Dayton Audio |
| Shipping Weight | 0.4700kg |
| Shipping Width | 0.133m |
| Shipping Height | 0.083m |
| Shipping Length | 0.133m |
| Shipping Cubic | 0.001468000m3 |
