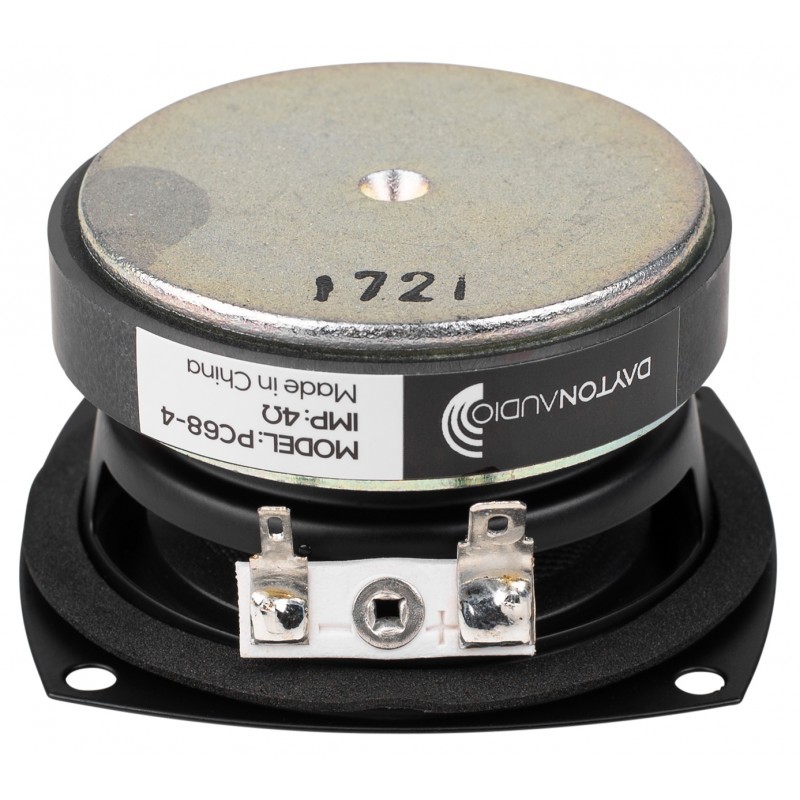

PC68-4 2-1/2" Full-Range Poly Cone Driver
Poly damped woven glass fiber cone controls cone break-u
$23.50
In Stock
Notify me when back in stock
The Dayton Audio PC68-4 2-1/2" full-range driver features a poly damped woven glass fiber cone, rubber surround, and high energy motor. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio the Dayton Audio PC68-4 driver will deliver high fidelity and low distortion from compact applications for an amazing value.
(848791003981)
• Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off
• High energy ferrite magnet increases BL for higher efficiency and increased output
• Rubber surround improves cone linearity and transients
• Smooth response with true full-range reproduction for simple speaker designs
• High energy ferrite magnet increases BL for higher efficiency and increased output
• Rubber surround improves cone linearity and transients
• Smooth response with true full-range reproduction for simple speaker designs
| Model Number | PC68-4 |
|---|---|
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791003981 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.6500 |
| Speaker Type | Full-Range |
| Nominal Diameter | 2.50" |
| Power Handling (RMS) | 20 watts |
| Power Handling (max) | 40 watts |
| Continuous Program Power | -- |
| Impedance | 4 ohms |
| Sensitivity | 86.1 dB @ 2.83V/1m |
| Frequency Response | 120 - 17,000 Hz |
| Voice Coil Diameter | 0.75" |
| Magnet Weight | -- |
| DC Resistance (Re) | 3.8 ohms |
| Voice Coil Inductance (Le) | 0.29 mH |
| Resonant Frequency (Fs) | 117.1 Hz |
| Mechanical Q (Qms) | 2.49 |
| Electromagnetic Q (Qes) | 0.87 |
| Total Q (Qts) | 0.65 |
| Diaphragm Mass Inc. Airload (Mms) | 1.7g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 1.07 mm/N |
| Surface Area Of Cone (Sd) | 21.2 cm² |
| Volume of Displacement (Vd) | 4.2 cm³ |
| BL Product (BL) | 2.4 Tm |
| Compliance Equivalent Volume (Vas) | 0.7 liters |
| Maximum Linear Excursion (Xmax) | 2.0 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Poly Composite Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | Stamped Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 68 mm |
| Overall Depth | 37 mm |
| Baffle Cutout Diameter | 64 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | 73 mm |
| Product Weight | -- |
| SKU | 848791003981 |
| Model # | PC68-4 |
| Barcode # | 848791003981 |
| Brand | Dayton Audio |
| Shipping Weight | 0.2840kg |
| Shipping Width | 0.076m |
| Shipping Height | 0.051m |
| Shipping Length | 0.076m |
| Shipping Cubic | 0.000295000m3 |
