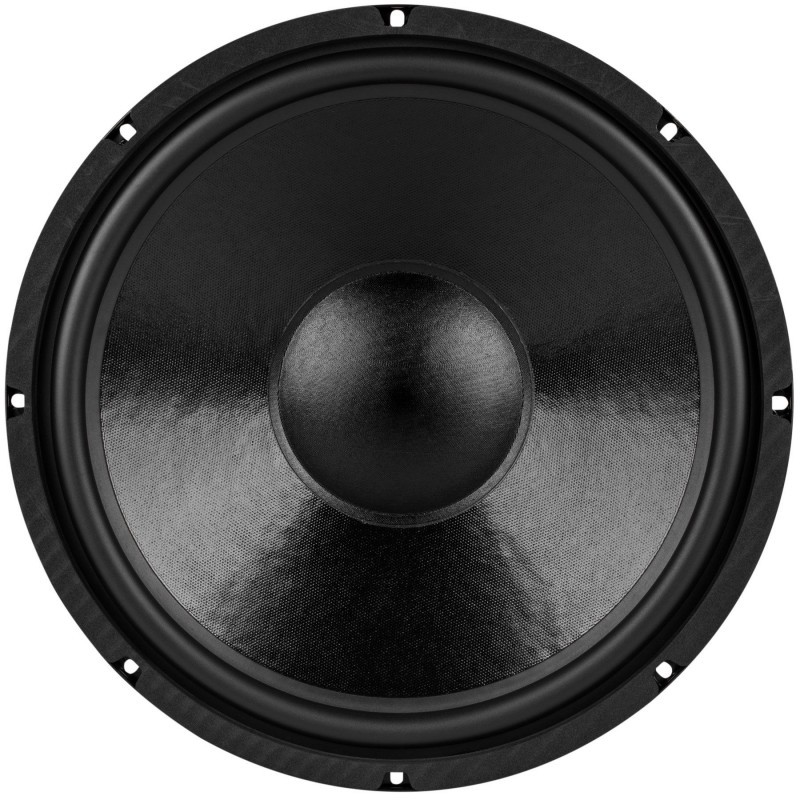

DCS385-4 15" Classic Subwoofer 4 Ohm
Sturdy stamped steel frame
$339.00
In Stock
Notify me when back in stock
The Dayton Audio Classic Series subwoofers offer solid value at lower price points. No compromises were made in the design, materials, or construction of these rugged 4-ohm powerhouses. The drivers feature a vented pole piece with copper cap, bumped back plate for improved excursion capability, Kevlar reinforced cone with rubber half-roll surround, and a high-temperature 4-layer copper voice coil wound on a polyimide former.
OPTIMUM CABINET SIZE *
Sealed Volume 3.83 ft.³
Sealed F3 39 Hz
Vented Volume 12.26 ft.³
Vented F3 22 Hz
- Enclosure volume/F3s based on BassBox "optimum" calculations
(844632080685)
• Sturdy stamped steel frame
• Vented pole piece and bumped back plate
• Inductance-reducing copper pole piece cap
• Treated non-pressed paper/Kevlar cone with rubber surround
• 4-layer VC with polyimide former
• Great for home and automotive applications
• Vented pole piece and bumped back plate
• Inductance-reducing copper pole piece cap
• Treated non-pressed paper/Kevlar cone with rubber surround
• 4-layer VC with polyimide former
• Great for home and automotive applications
| Speaker Series | Classic Series |
|---|---|
| Model Number | DCS385-4 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632080685 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 16.8500 |
| Speaker Type | Subwoofer |
| Nominal Diameter | 15" |
| Power Handling (RMS) | 300 watts |
| Power Handling (max) | 600 watts |
| Continuous Program Power | -- |
| Impedance | 4 ohms |
| Sensitivity | 91.7 dB @ 2.83V/1m |
| Frequency Response | 19 - 200 Hz |
| Voice Coil Diameter | 65.5 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 3.3 ohms |
| Voice Coil Inductance (Le) | 2.2 mH @ 1 kHz |
| Resonant Frequency (Fs) | 17.5 Hz |
| Mechanical Q (Qms) | 5.27 |
| Electromagnetic Q (Qes) | 0.42 |
| Total Q (Qts) | 0.39 |
| Diaphragm Mass Inc. Airload (Mms) | 273g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.3 mm/N |
| Surface Area Of Cone (Sd) | 850.1 cm² |
| Volume of Displacement (Vd) | 790.6 cm³ |
| BL Product (BL) | 15.4 Tm |
| Compliance Equivalent Volume (Vas) | 311 liters |
| Maximum Linear Excursion (Xmax) | 9.3 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Paper / Kevlar Cone |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Kapton® / Polyimide |
| Basket/Frame Material | Steel |
| Magnet Material | Ferrite |
| Overall Outside Diameter | 387.2 mm |
| Overall Depth | 185.5 mm |
| Baffle Cutout Diameter | 350 mm |
| # Mounting Holes | 8 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632080685 |
| Model # | DCS385-4 |
| Barcode # | 844632080685 |
| Brand | Dayton Audio |
| Shipping Weight | 9.7020kg |
| Shipping Width | 0.483m |
| Shipping Height | 0.216m |
| Shipping Length | 0.495m |
| Shipping Cubic | 0.051607000m3 |
| Assembled Length | 0.495m |
| Assembled Height | 0.216m |
| Assembled Width | 0.483m |
