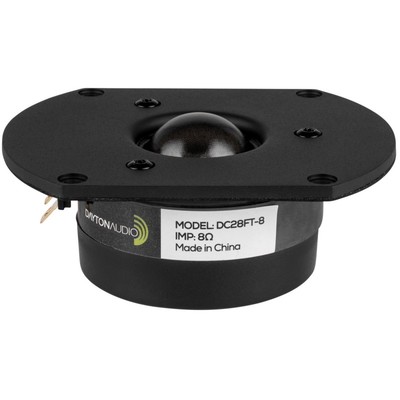

DC28FT-8 1-1/8" Silk Dome Truncated Tweeter 8 Ohm
Same performance specs as the popular DC28F "Silkies"
$52.50
In Stock
Notify me when back in stock
Superior European design and performance at a fraction of the cost of similar audiophile silk dome tweeters! Clinically tested and compared to Morel with amazingly similar results! Recommended for crossover points as low as 1800 Hz!
(844632069680)
• Same performance specs as the popular DC28F "Silkies"
• Truncated faceplates permit close driver spacing
• Damped rear chamber makes low crossover points possible
• Treated silk dome offers smooth response with airy highs
• Matches or exceeds the performance of many high-dollar tweeters
• Extremely popular for DIY projects;used in many designs
• Great replacement for the Dayton DC28FST-8 1-1/8" Silk Dome Truncated Shielded Tweeter
• Truncated faceplates permit close driver spacing
• Damped rear chamber makes low crossover points possible
• Treated silk dome offers smooth response with airy highs
• Matches or exceeds the performance of many high-dollar tweeters
• Extremely popular for DIY projects;used in many designs
• Great replacement for the Dayton DC28FST-8 1-1/8" Silk Dome Truncated Shielded Tweeter
| Speaker Series | Classic Series |
|---|---|
| Model Number | DC28FT-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632069680 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 1.2500 |
| Speaker Type | Tweeter |
| Nominal Diameter | 1.125" |
| Power Handling (RMS) | 50 watts |
| Power Handling (max) | 100 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 89 dB @ 1W/1m |
| Frequency Response | 1,300 - 20,000 Hz |
| Voice Coil Diameter | 29 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 5.4 ohms |
| Voice Coil Inductance (Le) | 0.09 mH @ 10 kHz |
| Resonant Frequency (Fs) | 834 Hz |
| Mechanical Q (Qms) | 0.81 |
| Electromagnetic Q (Qes) | 1.33 |
| Total Q (Qts) | 0.50 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | 6.6 cm² |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Treated Silk Dome |
| Cone / Dome Diameter | 1.125" |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | -- |
| Magnet Material | -- |
| Overall Outside Diameter | 110 mm |
| Overall Depth | 39 mm |
| Baffle Cutout Diameter | 69 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632069680 |
| Model # | DC28FT-8 |
| Barcode # | 844632069680 |
| Brand | Dayton Audio |
| Shipping Weight | 0.5500kg |
| Shipping Width | 0.127m |
| Shipping Height | 0.070m |
| Shipping Length | 0.127m |
| Shipping Cubic | 0.001127000m3 |
| Assembled Length | 0.127m |
| Assembled Height | 0.070m |
| Assembled Width | 0.127m |
Dayton Audio DC28FT-8 1-1/8" Silk Dome Trunca
By: Ross on 12 July 2017I fitted these tweeters to my 1987 KEF C40 speakers as the old tweeters were sounding very dull. These tweeters fitted with only slight modification to clear the terminal posts and new connectors for the cables. The sound is crystal clear and is full of life. They even look better than the originals. I would recommend them to anyone with old and tired C series KEF speakers.
