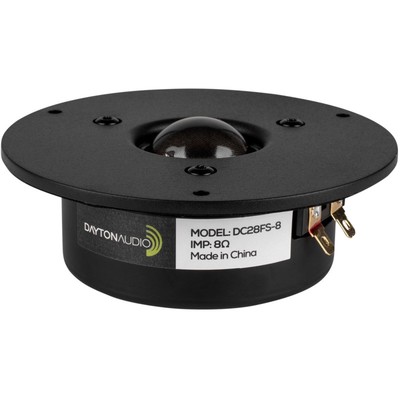

DC28FS-8 1-1/8" Silk Dome Shielded Tweeter 8 Ohm
Offers smooth and detailed high frequency performance
$57.50
In Stock
Notify me when back in stock
The shielded version of the famous Dayton Audio Silk Dome, this tweeter offers the same performance but in a CRT-safe design. Features a 1-1/8" silk dome with a ferrofluid cooled voice coil for superior damping. A damped rear chamber lowers the resonance point and provides a very smooth natural sound with excellent on and off axis response. Recommended for crossover points as low as 1,800 Hz, making it ideal for most 2-way speaker designs.
(844632015878)
• Offers smooth and detailed high frequency performance
• Magnetically shielded
• Ferrofluid cooled voice coil
• Magnetically shielded
• Ferrofluid cooled voice coil
| Speaker Series | Classic Series |
|---|---|
| Model Number | DC28FS-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632015878 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 1.3000 |
| Speaker Type | Tweeter |
| Nominal Diameter | 1.125" |
| Power Handling (RMS) | 50 watts |
| Power Handling (max) | 100 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 89 dB @ 1W/1m |
| Frequency Response | 1,600 - 20,000 Hz |
| Voice Coil Diameter | 29 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 5.4 ohms |
| Voice Coil Inductance (Le) | 1.58 mH @ 1 kHz |
| Resonant Frequency (Fs) | 905 Hz |
| Mechanical Q (Qms) | 2.21 |
| Electromagnetic Q (Qes) | 1.73 |
| Total Q (Qts) | 0.97 |
| Diaphragm Mass Inc. Airload (Mms) | -- |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | -- |
| Surface Area Of Cone (Sd) | 6.6 cm² |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | -- |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Treated Silk Dome |
| Cone / Dome Diameter | 1.125" |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | -- |
| Magnet Material | -- |
| Overall Outside Diameter | 110 mm |
| Overall Depth | 36 mm |
| Baffle Cutout Diameter | 78 mm |
| # Mounting Holes | 3 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632015878 |
| Model # | DC28FS-8 |
| Barcode # | 844632015878 |
| Brand | Dayton Audio |
| Shipping Weight | 0.7000kg |
| Shipping Width | 0.121m |
| Shipping Height | 0.121m |
| Shipping Length | 0.121m |
| Shipping Cubic | 0.001756000m3 |
| Assembled Length | 0.121m |
| Assembled Height | 0.121m |
| Assembled Width | 0.121m |
Dayton Audio DC28FS-8
By: Jeff on 23 February 2017Excellent sounding Tweeter with low crossover point, Dayton Audio is definitely great value for money.
(5)
Good Sound, Good Value Tweeter
By: Geoff Millar on 11 November 2016I'm using this tweeter in Curt Campbell's "Tritrix" MTM speakers, which also feature the Dayton DC130BS-4 mid woofer. They sound very smooth on and off axis and seem to handle a decent amount of volume without any trouble. Things like cymbals and violin harmonics come across really well, for example. The DC28 is easy to handle in a crossover, too: the Tritrix and many other designs which use the DC28 only require a second order crossover. The tweeter comes packed with a plastic protective moulding which doubles as a cool mounting template, great idea. The only drawback of this tweeter is that the silk dome is a real dust attractor and you will need to use a grille to protect the dome. Good value for the performance, recommended
(4)
