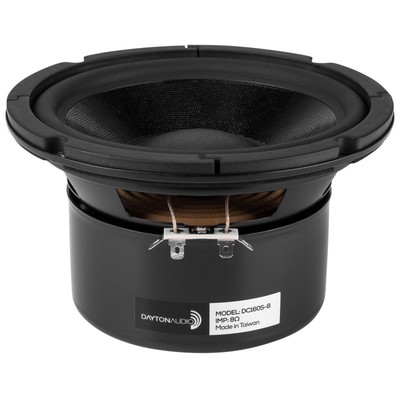

DC160S-8 6-1/2" Classic Shielded Woofer 8 Ohm
Great bang-for-the-buck driver can be used as a woofer,
$97.50
Availability:
8-14 days
8-14 days
Notify me when back in stock
Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC160S-8 6-1/2" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. You can even be use the DC160S-8 as a small subwoofer! The excellent low frequency performance will amaze you.
A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.
OPTIMUM CABINET SIZE *
Sealed Volume 0.1 ft.³
Sealed F3 95 Hz
Vented Volume 0.24 ft.³
Vented F3 60 Hz
- Enclosure volume/F3s based on BassBox "optimum" calculations
(844632000249)
• Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer
• Smooth frequency response up to 2 kHz and great bass response
• Rubber surround, aluminum voice coil, and extended bump plate
• Low 32 Hz free-air resonance
• Smooth frequency response up to 2 kHz and great bass response
• Rubber surround, aluminum voice coil, and extended bump plate
• Low 32 Hz free-air resonance
| Speaker Series | Classic Series |
|---|---|
| Model Number | DC160S-8 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 844632000249 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 5.0000 |
| Speaker Type | Woofer |
| Nominal Diameter | 6.50" |
| Power Handling (RMS) | 50 watts |
| Power Handling (max) | 100 watts |
| Continuous Program Power | -- |
| Impedance | 8 ohms |
| Sensitivity | 85.3 dB @ 2.83V/1m |
| Frequency Response | 33 - 4,000 Hz |
| Voice Coil Diameter | 35 mm |
| Magnet Weight | 15 oz. |
| DC Resistance (Re) | 6.9 ohms |
| Voice Coil Inductance (Le) | 2.29 mH @ 1 kHz |
| Resonant Frequency (Fs) | 30.3 Hz |
| Mechanical Q (Qms) | 3.04 |
| Electromagnetic Q (Qes) | 0.33 |
| Total Q (Qts) | 0.30 |
| Diaphragm Mass Inc. Airload (Mms) | 32.2g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.86 mm/N |
| Surface Area Of Cone (Sd) | 134.8 cm² |
| Volume of Displacement (Vd) | 42.5 cm³ |
| BL Product (BL) | 11.3 Tm |
| Compliance Equivalent Volume (Vas) | 22.5 liters |
| Maximum Linear Excursion (Xmax) | 3.15 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Treated Paper |
| Entry / Exit Diameter | -- |
| Surround Material | Rubber |
| Voice Coil Wire Material | Copper |
| Voice Coil Former | Aluminum |
| Basket/Frame Material | Steel |
| Magnet Material | Ferrite |
| Shielded | Yes |
| Overall Outside Diameter | 165 mm |
| Overall Depth | 95 mm |
| Baffle Cutout Diameter | 144.6 mm |
| # Mounting Holes | 4 |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 844632000249 |
| Model # | DC160S-8 |
| Barcode # | 844632000249 |
| Brand | Dayton Audio |
| Shipping Weight | 2.3000kg |
| Shipping Width | 0.171m |
| Shipping Height | 0.108m |
| Shipping Length | 0.171m |
| Shipping Cubic | 0.003173000m3 |
| Assembled Length | 0.171m |
| Assembled Height | 0.108m |
| Assembled Width | 0.171m |
