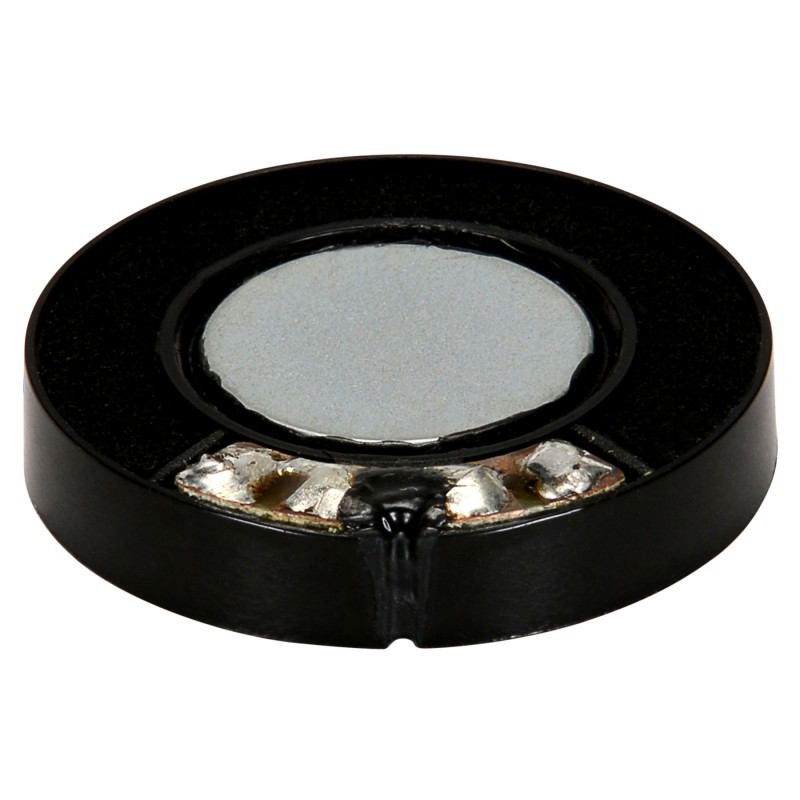

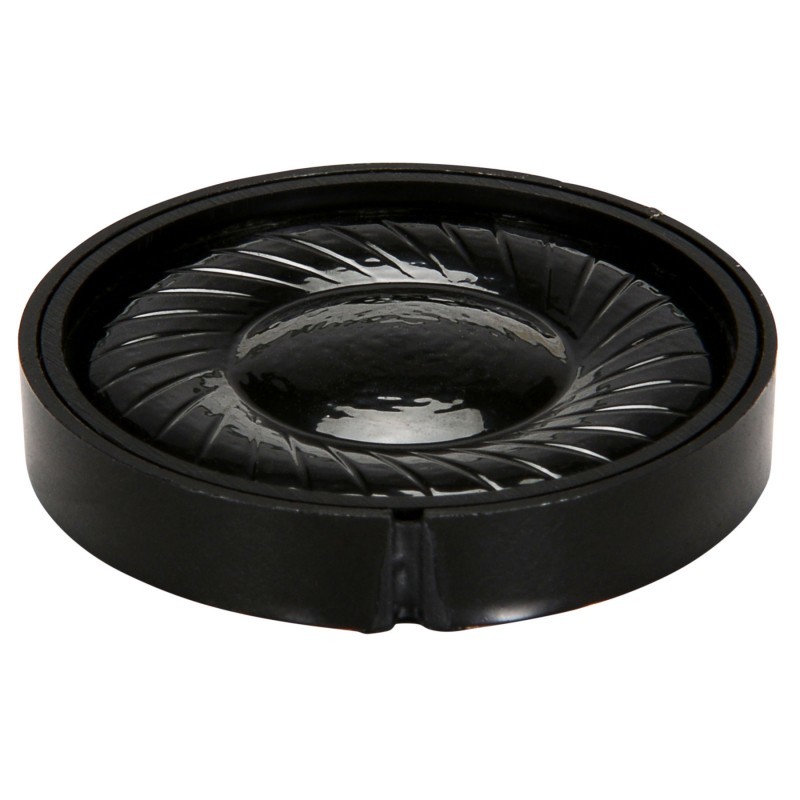

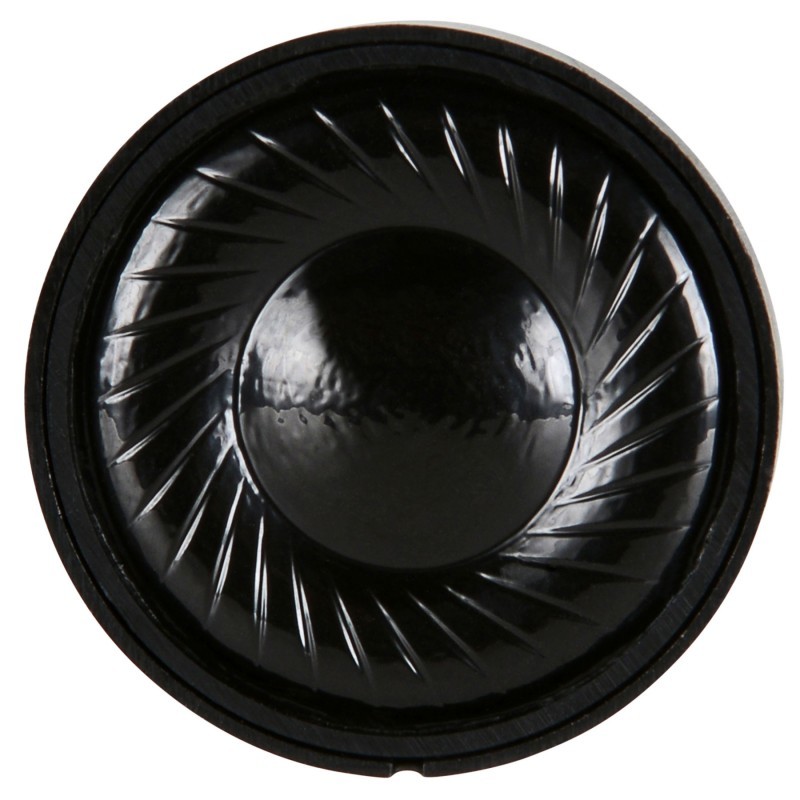

CE30MB-16B 1-1/4" Mini Speaker Black 16 Ohm
Lightweight headphone-style mylar diaphragm
$6.95
Availability:
8-14 days
8-14 days
Notify me when back in stock
The Commercial Engineering (CE) series of speaker drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects.
The Dayton Audio CE30MB-16A is a compact, high-efficiency “headphone-style” mini speaker with a lightweight Mylar diaphragm and extended frequency range. It’s a rugged choice for adding audio to inexpensive headphones, electronic toys, and portable electronics.
Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.
(848791001116)
• Lightweight headphone-style mylar diaphragm
• Rugged plastic frame with raised edge for mounting
• Powerful neodymium magnet
• Suitable for headphone applications
• Rugged plastic frame with raised edge for mounting
• Powerful neodymium magnet
• Suitable for headphone applications
| Speaker Series | CE Series |
|---|---|
| Model Number | CE30MB-16B |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791001116 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.0100 |
| Speaker Type | Mini Speaker |
| Nominal Diameter | 1.25" |
| Power Handling (RMS) | 0.50 watts |
| Power Handling (max) | 1 watts |
| Continuous Program Power | -- |
| Impedance | 16 ohms |
| Sensitivity | 77 dB @ 1W/1m |
| Frequency Response | 400 - 20,000 Hz |
| Voice Coil Diameter | 12.5 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 15.7 ohms |
| Voice Coil Inductance (Le) | 1.35 mH |
| Resonant Frequency (Fs) | 401 Hz |
| Mechanical Q (Qms) | 2.55 |
| Electromagnetic Q (Qes) | 5.28 |
| Total Q (Qts) | 1.72 |
| Diaphragm Mass Inc. Airload (Mms) | 0.05 g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 3.23 mm/N |
| Surface Area Of Cone (Sd) | 3.1 cm² |
| Volume of Displacement (Vd) | 0.03 cm³ |
| BL Product (BL) | 0.60 Tm |
| Compliance Equivalent Volume (Vas) | 0.04 liters |
| Maximum Linear Excursion (Xmax) | 0.1 mm |
| Driver's Mechanical Losses (Rms) | -- |
| Cone / Diaphragm Material | Poly / Mylar Diaphragm |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | -- |
| Voice Coil Former | Mylar |
| Basket/Frame Material | -- |
| Magnet Material | Neodymium |
| Overall Outside Diameter | 29.7 mm |
| Overall Depth | 5.1 mm |
| Baffle Cutout Diameter | -- |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791001116 |
| Model # | CE30MB-16B |
| Barcode # | 848791001116 |
| Brand | Dayton Audio |
| Shipping Weight | 0.0070kg |
| Shipping Width | 0.044m |
| Shipping Height | 0.013m |
| Shipping Length | 0.044m |
| Shipping Cubic | 0.000025000m3 |
| Assembled Length | 0.044m |
| Assembled Height | 0.013m |
| Assembled Width | 0.044m |
