DAEX32EP-4 Thruster 32mm Exciter 40W 4 Ohm

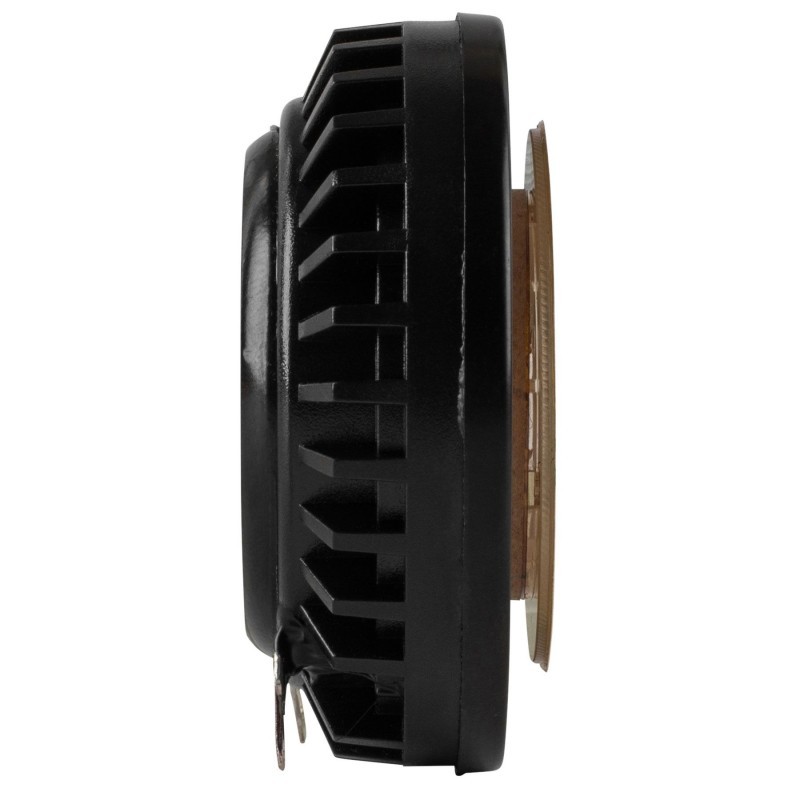

Robust, heavy-duty design with a 32 mm voice coil attach
Notify me when back in stock
A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small Class D audio amplifiers, without sacrificing total output.

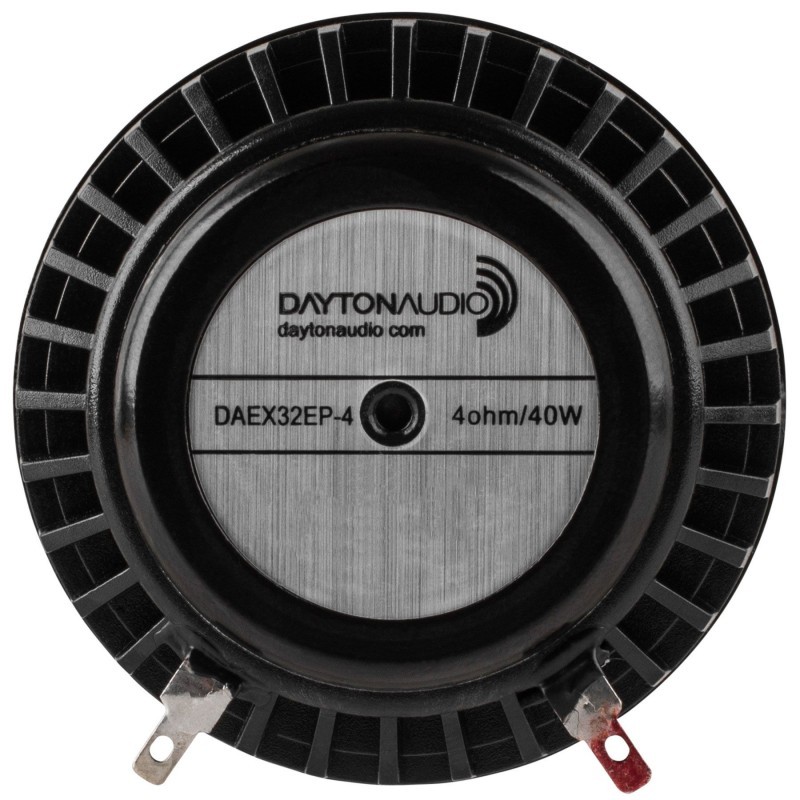

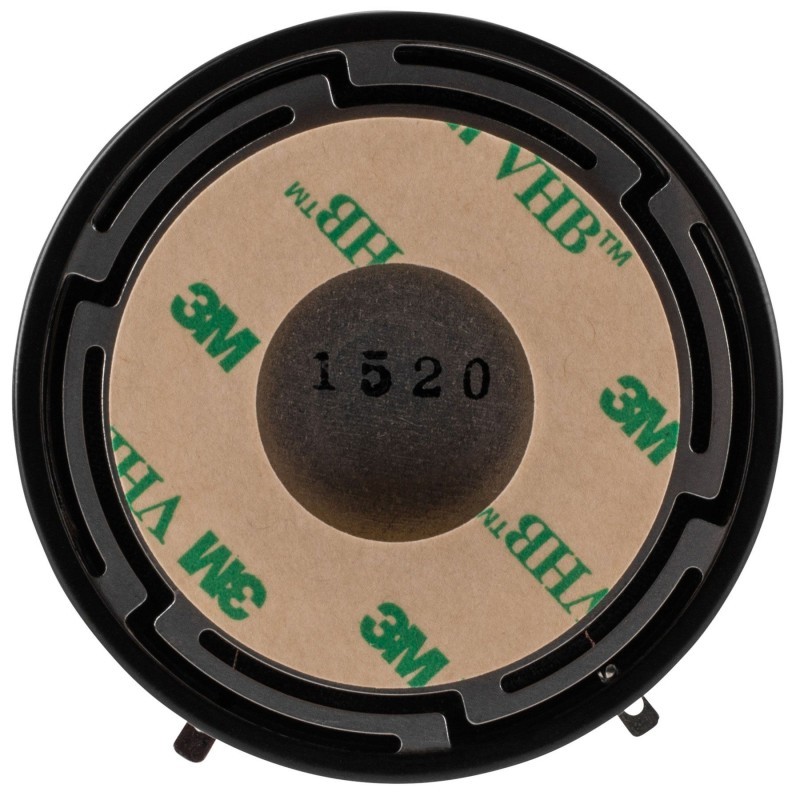

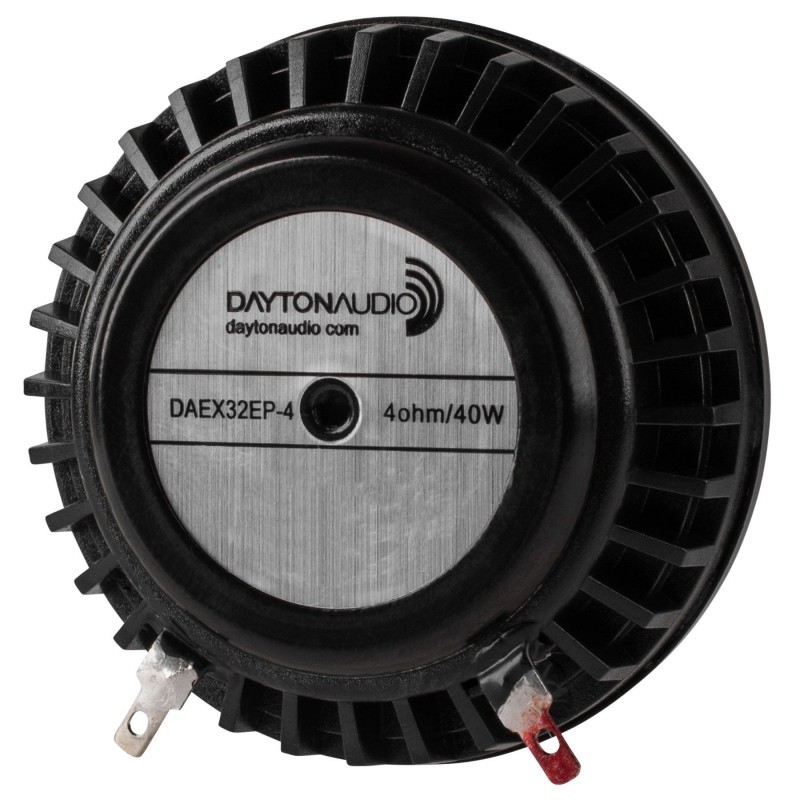

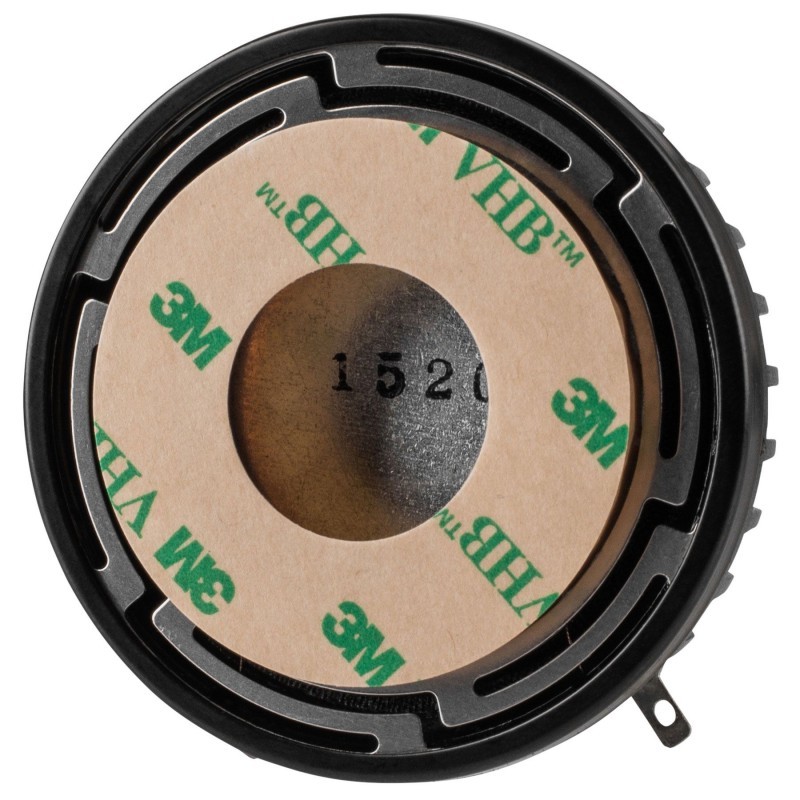

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body ... just peel and stick! Two male spade quick-disconnect terminals are built onto the main body for quick electrical connection.
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.
Adhesive dimensions: 41.75 mm (outside diameter), 21.75 (inside diameter)
(848791000928)
• Robust, heavy-duty design with a 32 mm voice coil attached to a steel spider
• Pre-applied 3M VHB adhesive for quick, secure installation
• Rare-earth neodymium motor and a proprietary two-layer voice coil
• 4 ohms impedance for use with small, Class D amplifiers
• 40 watt RMS power handling for high output
| Speaker Series | Exciters |
|---|---|
| Model Number | DAEX32EP-4 |
| Color | Black |
| Unit of Measure | Each |
| UPC | 848791000928 |
| Warranty - Parts | 5 Years |
| Warranty - Labor | 5 Years |
| Product Shipping Weight (lbs.) | 0.3000 |
| Speaker Type | Exciter |
| Power Handling (RMS) | 40 watts |
| Power Handling (max) | -- |
| Continuous Program Power | -- |
| Impedance | 4 ohms |
| Sensitivity | -- |
| Frequency Response | -- |
| Voice Coil Diameter | 32 mm |
| Magnet Weight | -- |
| DC Resistance (Re) | 3.3 ohms |
| Voice Coil Inductance (Le) | 0.21 mH @ 1 kHz |
| Resonant Frequency (Fs) | 395 Hz |
| Mechanical Q (Qms) | -- |
| Electromagnetic Q (Qes) | -- |
| Total Q (Qts) | 1.38 |
| Diaphragm Mass Inc. Airload (Mms) | 5.4 g |
| Moving Mass Of Diaphragm (Mmd) | -- |
| Mechanical Compliance of Suspension (Cms) | 0.08 mm/N |
| Surface Area Of Cone (Sd) | -- |
| Volume of Displacement (Vd) | -- |
| BL Product (BL) | 4.2 Tm |
| Compliance Equivalent Volume (Vas) | -- |
| Maximum Linear Excursion (Xmax) | -- |
| Driver's Mechanical Losses (Rms) | -- |
| Entry / Exit Diameter | -- |
| Surround Material | -- |
| Voice Coil Wire Material | -- |
| Voice Coil Former | -- |
| Basket/Frame Material | -- |
| Magnet Material | -- |
| Overall Outside Diameter | 60 mm dia. |
| Overall Depth | 23 mm |
| Baffle Cutout Diameter | -- |
| Mounting Hole Diameter | -- |
| Bolt Circle Diameter | -- |
| Product Weight | -- |
| SKU | 848791000928 |
| Model # | DAEX32EP-4 |
| Barcode # | 848791000928 |
| Brand | Dayton Audio |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.102m |
| Shipping Height | 0.051m |
| Shipping Length | 0.102m |
| Shipping Cubic | 0.000524000m3 |
| Assembled Length | 0.102m |
| Assembled Height | 0.051m |
| Assembled Width | 0.102m |
